Activating unhappy path in form requires me to type sentence TWICE

Rasa Open Source
1

I have a Form that functions fine with the happy path. I have created a couple of unhappy paths with interactive learning but even when I follow those it won’t let the non-form path take over and I get the “Failed to extract slot…” message on my console.

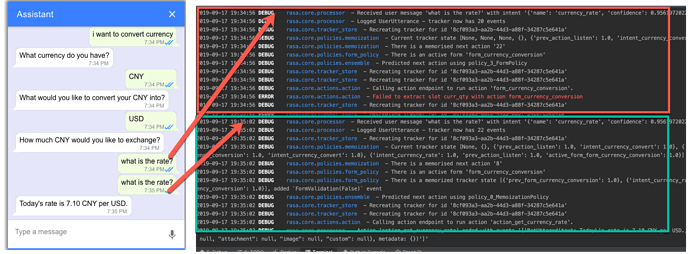

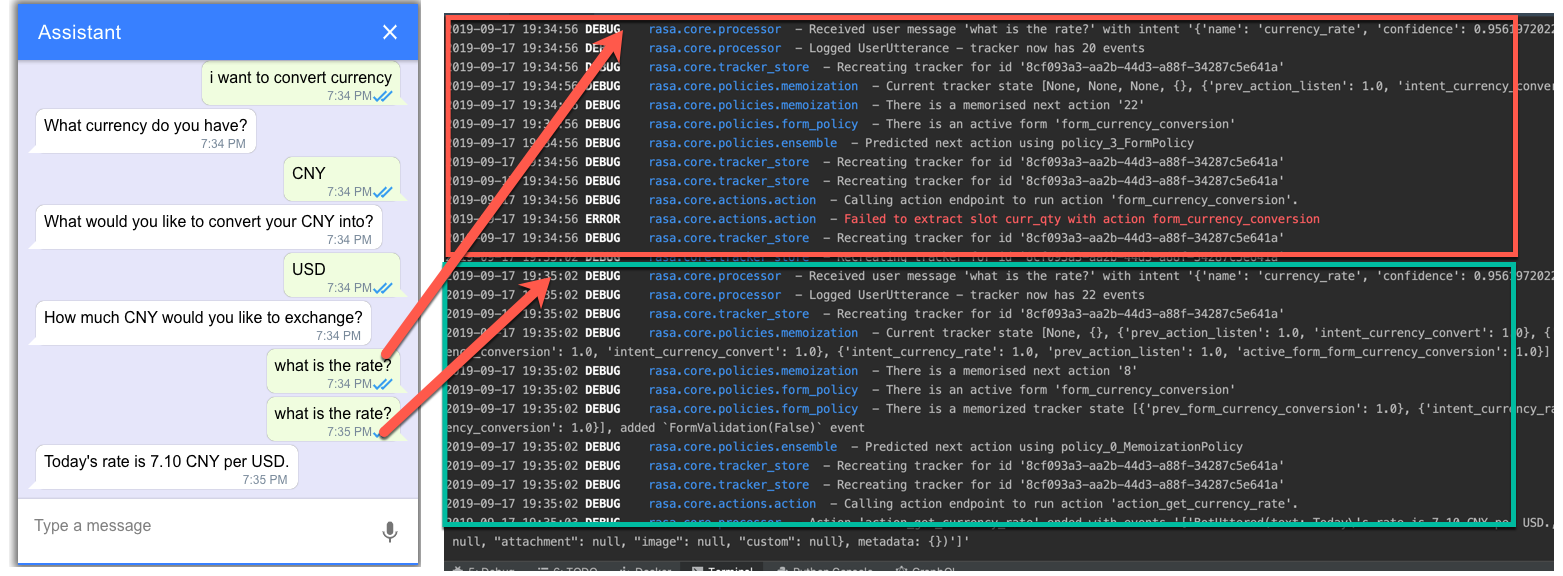

However, if I type the same thing once again, it now correctly processes the non-happy path story flow. See attached image… the first time it is still stuck in form, but the second time it breaks out. How do I make it work the first time?

rasa
rasa1563×576 363 KB

STORY EXAMPLE

## interactive_story_1
* currency_convert
    - form_currency_conversion
    - form{"name": "form_currency_conversion"}
    - slot{"requested_slot": "from_currency"}
* form: currency_convert{"currency": "CNY"}
    - form: form_currency_conversion
    - slot{"from_currency": "CNY"}
    - slot{"requested_slot": "to_currency"}
* form: currency_convert{"currency": "USD"}
    - form: form_currency_conversion
    - slot{"to_currency": "USD"}
    - slot{"requested_slot": "curr_qty"}
* currency_rate
    - action_get_currency_rate
    - form_currency_conversion
    - slot{"requested_slot": "curr_qty"}
* form: currency_convert{"curr_qty": "100"}
    - form: form_currency_conversion
    - slot{"curr_qty": "100"}
    - slot{"converted_to_curr_qty": "14.09"}
    - slot{"requested_slot": "currency_denomination"}
* form: currency_denomination
    - form: form_currency_conversion
    - slot{"currency_denomination": "tens and twenties"}
    - slot{"from_currency": null}
    - slot{"to_currency": null}
    - slot{"curr_qty": null}
    - slot{"currency_denomination": null}
    - form{"name": null}
    - slot{"requested_slot": null}
    - utter_currrency_anything_else
* deny
    - utter_goodbye
* goodbye
    - utter_goodbye

In the above, I start form, enter from_currency, then to_currency and then I interrupt with question about currency_rate.

Relevant parts of CurrencyConversionForm(FormAction):

class CurrencyConversionForm(FormAction):

    def name(self) -> Text:
        return "form_currency_conversion"

    @staticmethod
    def required_slots(tracker: Tracker) -> List[Text]:
        return [ 'from_currency', 'to_currency', 'curr_qty', 'currency_denomination']

    def slot_mappings(self) -> Dict[Text, Union[Dict, List[Dict]]]:
        return {
            "from_currency": [self.from_entity(entity="from_currency", intent="currency_convert"),
                              self.from_entity(entity="currency", intent="currency_convert")],
            "to_currency": [self.from_entity(entity="to_currency", intent="currency_convert"),
                            self.from_entity(entity="currency", intent="currency_convert")],
            "curr_qty":  self.from_entity(entity="curr_qty", intent="currency_convert"),
            "currency_denomination": self.from_text(intent="currency_denomination")
        }

    def validate_from_currency(self, value: Text, dispatcher: CollectingDispatcher, tracker: Tracker,
                          domain: Dict[Text, Any],) -> Dict[Text, Any]:
        tracker.slots['from_currency'] = value.upper()
        return {'from_currency': value.upper()}

    def validate_to_currency(self, value: Text, dispatcher: CollectingDispatcher, tracker: Tracker, domain: Dict[Text, Any],) -> Dict[Text, Any]:
        tracker.slots['to_currency'] = value.upper()
        return {'to_currency': value.upper()}

    def validate_curr_qty(self, value: Text, dispatcher: CollectingDispatcher, tracker: Tracker, domain: Dict[Text, Any],) -> Dict[Text, Any]:
        from_curr = tracker.slots.get('from_currency')
        to_curr = tracker.slots.get('to_currency')
        rate = ActionCurrencyRate().get_rate(from_curr, to_curr)
        qty = 1 / rate * float(value)
        qty_str = '{:.2f}'.format(qty)
        return {'curr_qty': value, 'converted_to_curr_qty': qty_str}

LOG OUTPUT:
(The sad part about Failing to extract slot... is at end)

2019-09-17 17:53:47 INFO     root  - Starting Rasa server on http://localhost:5005
2019-09-17 17:53:47 INFO     root  - Enabling coroutine debugging. Loop id 140658434375704.
2019-09-17 17:53:47 DEBUG    rasa.model  - Extracted model to '/var/folders/wk/ynmgx56s43xcfzq2cc3_nmw40000gn/T/tmpg_1wdkd7'.
2019-09-17 17:53:47 DEBUG    rasa.core.tracker_store  - Connected to InMemoryTrackerStore.
2019-09-17 17:53:47 DEBUG    rasa.model  - Extracted model to '/var/folders/wk/ynmgx56s43xcfzq2cc3_nmw40000gn/T/tmpn816wc4v'.
2019-09-17 17:53:47 DEBUG    pykwalify.compat  - Using yaml library: /Users/michaelbrill/Documents/projects/fullyrun2/env/lib/python3.6/site-packages/ruamel/yaml/__init__.py
2019-09-17 17:54:00 DEBUG    rasa.core.tracker_store  - Creating a new tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'.
2019-09-17 17:54:00 DEBUG    rasa.core.processor  - Received user message 'i want to convert currency' with intent '{'name': 'currency_convert', 'confidence': 0.9689755439758301}' and entities '[]'
2019-09-17 17:54:00 DEBUG    rasa.core.processor  - Logged UserUtterance - tracker now has 2 events
2019-09-17 17:54:00 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:00 DEBUG    rasa.core.policies.memoization  - Current tracker state [None, None, None, {}, {'intent_currency_convert': 1.0, 'prev_action_listen': 1.0}]
2019-09-17 17:54:00 DEBUG    rasa.core.policies.memoization  - There is a memorised next action '22'
2019-09-17 17:54:00 DEBUG    rasa.core.policies.form_policy  - There is no active form
2019-09-17 17:54:00 DEBUG    rasa.core.policies.ensemble  - Predicted next action using policy_0_MemoizationPolicy
2019-09-17 17:54:01 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:01 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:01 DEBUG    rasa.core.actions.action  - Calling action endpoint to run action 'form_currency_conversion'.
2019-09-17 17:54:01 DEBUG    rasa.core.processor  - Action 'form_currency_conversion' ended with events '['BotUttered(text: What currency do you have?, data: {"elements": null, "quick_replies": null, "buttons": null, "attachment": null, "image": null, "custom": null}, metadata: {"converted_to_curr_qty": null, "curr_qty": null, "currency_denomination": null, "from_currency": null, "requested_slot": null, "to_currency": null})', 'Form(form_currency_conversion)', 'SlotSet(key: requested_slot, value: from_currency)']'
2019-09-17 17:54:01 DEBUG    rasa.core.processor  - Current slot values:
        converted_to_curr_qty: None
        curr_qty: None
        currency_denomination: None
        from_currency: None
        requested_slot: from_currency
        to_currency: None
2019-09-17 17:54:01 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:01 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:01 DEBUG    rasa.core.policies.memoization  - Current tracker state [None, None, None, {}, {'intent_currency_convert': 1.0, 'prev_action_listen': 1.0}]
2019-09-17 17:54:01 DEBUG    rasa.core.policies.memoization  - There is a memorised next action '22'
2019-09-17 17:54:01 DEBUG    rasa.core.policies.mapping_policy  - There is no mapped action for the predicted intent, 'currency_convert'.
2019-09-17 17:54:01 DEBUG    rasa.core.policies.form_policy  - There is an active form 'form_currency_conversion'
2019-09-17 17:54:01 DEBUG    rasa.core.policies.ensemble  - Predicted next action using policy_3_FormPolicy
2019-09-17 17:54:01 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:01 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:01 DEBUG    rasa.core.processor  - Action 'action_listen' ended with events '[]'
2019-09-17 17:54:01 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:07 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:07 DEBUG    rasa.core.processor  - Received user message 'CNY' with intent '{'name': 'currency_convert', 'confidence': 0.9669369459152222}' and entities '[{'start': 0, 'end': 3, 'value': 'CNY', 'entity': 'currency', 'confidence': 0.8591905717558912, 'extractor': 'CRFEntityExtractor'}]'
2019-09-17 17:54:07 DEBUG    rasa.core.processor  - Current slot values:
        converted_to_curr_qty: None
        curr_qty: None
        currency_denomination: None
        from_currency: None
        requested_slot: from_currency
        to_currency: None
2019-09-17 17:54:07 DEBUG    rasa.core.processor  - Logged UserUtterance - tracker now has 8 events
2019-09-17 17:54:07 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:07 DEBUG    rasa.core.policies.memoization  - Current tracker state [None, None, None, {}, {'intent_currency_convert': 1.0, 'prev_action_listen': 1.0}]
2019-09-17 17:54:07 DEBUG    rasa.core.policies.memoization  - There is a memorised next action '22'
2019-09-17 17:54:07 DEBUG    rasa.core.policies.form_policy  - There is an active form 'form_currency_conversion'
2019-09-17 17:54:07 DEBUG    rasa.core.policies.ensemble  - Predicted next action using policy_3_FormPolicy
2019-09-17 17:54:07 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:07 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:07 DEBUG    rasa.core.actions.action  - Calling action endpoint to run action 'form_currency_conversion'.
2019-09-17 17:54:07 DEBUG    rasa.core.processor  - Action 'form_currency_conversion' ended with events '['BotUttered(text: What would you like to convert your CNY into?, data: {"elements": null, "quick_replies": null, "buttons": null, "attachment": null, "image": null, "custom": null}, metadata: {"converted_to_curr_qty": null, "curr_qty": null, "currency_denomination": null, "from_currency": "CNY", "requested_slot": "from_currency", "to_currency": null})', 'SlotSet(key: from_currency, value: CNY)', 'SlotSet(key: requested_slot, value: to_currency)']'
2019-09-17 17:54:07 DEBUG    rasa.core.processor  - Current slot values:
        converted_to_curr_qty: None
        curr_qty: None
        currency_denomination: None
        from_currency: CNY
        requested_slot: to_currency
        to_currency: None
2019-09-17 17:54:07 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:08 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:08 DEBUG    rasa.core.policies.memoization  - Current tracker state [None, None, None, {}, {'intent_currency_convert': 1.0, 'prev_action_listen': 1.0}]
2019-09-17 17:54:08 DEBUG    rasa.core.policies.memoization  - There is a memorised next action '22'
2019-09-17 17:54:08 DEBUG    rasa.core.policies.mapping_policy  - There is no mapped action for the predicted intent, 'currency_convert'.
2019-09-17 17:54:08 DEBUG    rasa.core.policies.form_policy  - There is an active form 'form_currency_conversion'
2019-09-17 17:54:08 DEBUG    rasa.core.policies.ensemble  - Predicted next action using policy_3_FormPolicy
2019-09-17 17:54:08 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:08 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:08 DEBUG    rasa.core.processor  - Action 'action_listen' ended with events '[]'
2019-09-17 17:54:08 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:10 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:10 DEBUG    rasa.core.processor  - Received user message 'USD' with intent '{'name': 'currency_convert', 'confidence': 0.9733215570449829}' and entities '[{'start': 0, 'end': 3, 'value': 'USD', 'entity': 'currency', 'confidence': 0.8844515839466134, 'extractor': 'CRFEntityExtractor'}]'
2019-09-17 17:54:10 DEBUG    rasa.core.processor  - Current slot values:
        converted_to_curr_qty: None
        curr_qty: None
        currency_denomination: None
        from_currency: CNY
        requested_slot: to_currency
        to_currency: None
2019-09-17 17:54:10 DEBUG    rasa.core.processor  - Logged UserUtterance - tracker now has 14 events
2019-09-17 17:54:10 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:10 DEBUG    rasa.core.policies.memoization  - Current tracker state [None, None, None, {}, {'intent_currency_convert': 1.0, 'prev_action_listen': 1.0}]
2019-09-17 17:54:10 DEBUG    rasa.core.policies.memoization  - There is a memorised next action '22'
2019-09-17 17:54:10 DEBUG    rasa.core.policies.form_policy  - There is an active form 'form_currency_conversion'
2019-09-17 17:54:10 DEBUG    rasa.core.policies.ensemble  - Predicted next action using policy_3_FormPolicy
2019-09-17 17:54:11 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:11 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:11 DEBUG    rasa.core.actions.action  - Calling action endpoint to run action 'form_currency_conversion'.
2019-09-17 17:54:11 DEBUG    rasa.core.processor  - Action 'form_currency_conversion' ended with events '['BotUttered(text: How much CNY do you have?, data: {"elements": null, "quick_replies": null, "buttons": null, "attachment": null, "image": null, "custom": null}, metadata: {"converted_to_curr_qty": null, "curr_qty": null, "currency_denomination": null, "from_currency": "CNY", "requested_slot": "to_currency", "to_currency": "USD"})', 'SlotSet(key: to_currency, value: USD)', 'SlotSet(key: requested_slot, value: curr_qty)']'
2019-09-17 17:54:11 DEBUG    rasa.core.processor  - Current slot values:
        converted_to_curr_qty: None
        curr_qty: None
        currency_denomination: None
        from_currency: CNY
        requested_slot: curr_qty
        to_currency: USD
2019-09-17 17:54:11 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:11 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:11 DEBUG    rasa.core.policies.memoization  - Current tracker state [None, None, None, {}, {'intent_currency_convert': 1.0, 'prev_action_listen': 1.0}]
2019-09-17 17:54:11 DEBUG    rasa.core.policies.memoization  - There is a memorised next action '22'
2019-09-17 17:54:11 DEBUG    rasa.core.policies.mapping_policy  - There is no mapped action for the predicted intent, 'currency_convert'.
2019-09-17 17:54:11 DEBUG    rasa.core.policies.form_policy  - There is an active form 'form_currency_conversion'
2019-09-17 17:54:11 DEBUG    rasa.core.policies.ensemble  - Predicted next action using policy_3_FormPolicy
2019-09-17 17:54:11 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:11 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:11 DEBUG    rasa.core.processor  - Action 'action_listen' ended with events '[]'
2019-09-17 17:54:11 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:16 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:16 DEBUG    rasa.core.processor  - Received user message 'what is the conversion rate' with intent '{'name': 'currency_rate', 'confidence': 0.9639586210250854}' and entities '[]'
2019-09-17 17:54:16 DEBUG    rasa.core.processor  - Logged UserUtterance - tracker now has 20 events
2019-09-17 17:54:16 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:16 DEBUG    rasa.core.policies.memoization  - Current tracker state [None, None, None, {}, {'intent_currency_convert': 1.0, 'prev_action_listen': 1.0}]
2019-09-17 17:54:16 DEBUG    rasa.core.policies.memoization  - There is a memorised next action '22'
2019-09-17 17:54:16 DEBUG    rasa.core.policies.form_policy  - There is an active form 'form_currency_conversion'
2019-09-17 17:54:16 DEBUG    rasa.core.policies.ensemble  - Predicted next action using policy_3_FormPolicy
2019-09-17 17:54:17 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:17 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'
2019-09-17 17:54:17 DEBUG    rasa.core.actions.action  - Calling action endpoint to run action 'form_currency_conversion'.
2019-09-17 17:54:17 ERROR    rasa.core.actions.action  - Failed to extract slot curr_qty with action form_currency_conversion
2019-09-17 17:54:17 DEBUG    rasa.core.tracker_store  - Recreating tracker for id '8cf093a3-aa2b-44d3-a88f-34287c5e641a'

Soooo, what am I doing wrong?

2

OK, turns out that this is somehow related to the client - was using assister/packages/rasa at master · assister-ai/assister · GitHub.

When I used rasa shell or the socketio client, everything worked as it should.

Don’t know why.

1 Like
3

Alright, glad you managed to figure it out!

4

1 problem down, 99 to go. :-/

5

what other problems are you facing?

6

Hi @akelad. Well, today’s problem is that interactive stories keep inserting action_listen where it shouldn’t. Specifically:

When I am in a form and want to handle an exception. In interactive training, when user enters exception text, it recognizes the exception intent correctly and then I make the next step an utterance associated with that exception intent and return control to the form. This causes the most recent slot ask to be repeated, which is great… and the user can continue entering stuff into form.

However, when it saves the story, it puts an action_listen between my exception intent utterance and reactivation of the form… even though there isn’t one in the training. So I have to remember to go comb through and remove those… which is getting increasingly difficult.

Something like this:

* currency_convert
    - form_currency_conversion
    - form{"name": "form_currency_conversion"}
    - slot{"requested_slot": "from_currency"}
* form: currency_convert{"from_currency": "RMB", "to_currency": "USD"}
    - form: form_currency_conversion
    - slot{"to_currency": "USD"}
    - slot{"from_currency": "RMB"}
    - slot{"requested_slot": "curr_qty"}
* currency_rate
    - action_get_currency_rate
    - action_listen   <-- That does not belong there. I have to remove
    - form_currency_conversion
    - slot{"requested_slot": "curr_qty"}

I’m 100% sure I’m not accepting action_listen in interactive… I have checked very carefully several times.

7

Switched to Rasa X and that doesn’t save the extra action_listen.

8

@Ghostvv any idea what’s going on here with IL and forms?

9

what version are you using? There was a bug with action_listen, it should be fixed in the latest version

10

1.2.8 Again, it didn’t show up with rasa x but did show up with CLI interactive mode

11

I suggest to upgrade to the latest version
